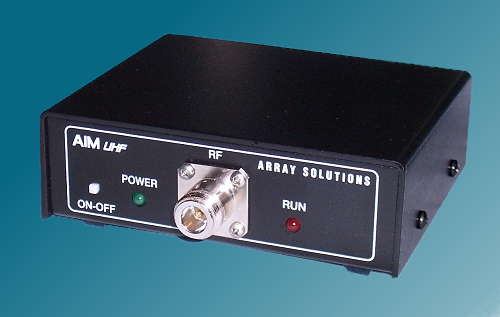

AIMuhf 800MHz+ Features:

  • Frequency range 5KHz to 1 GHz
  • Temperature compensated oscillator (TCXO)
  • TDR function < NEW May, 2011 >
  • Scan averaging up to 256x
  • Type-N RF connector
  • Heavy duty case
  • Expansion port for accessories

The AIMuhf package includes:

  • AIMuhf antenna analyzer
  • 120 VAC wall power supply
  • Calibration hardware:
    short, open, & 50 ohm resistor
  • USB cable
  • Printed quick start guide
  • Free software updates

Click for more detailed specs      Latest program and manual

Compare to the AIM4300

See the QST product review of the AIMuhf

ARRL members can see a video of the AIMuhf in action here.

70 cm Dipole Antenna

This is a screen shot of a 70 cm dipole antenna.
The data on the right side correspond to the frequency where the cursor (cyan) is positioned near the point of minimum SWR.

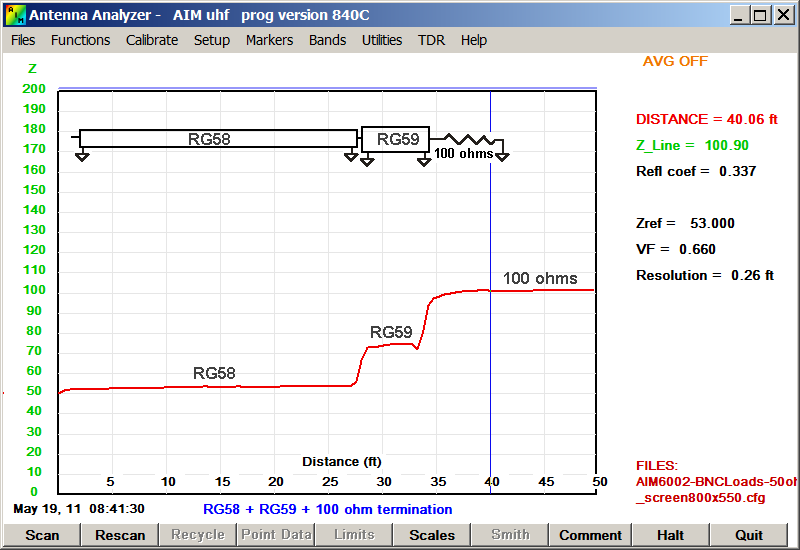

TDR scan of series coax

This is a TDR scan of two different coaxial lines terminated with a 100 ohm resistor.
The cursor data on the right side shows the distance along the line (feet or meters) and the impedance at this point.

The price is $695 and orders can be placed at our on-line store
The unit price of $695 includes the precision calibration loads (cal kit) and power supply for 120V operation.

The AIMuhf does not replace the AIM4170 in our product line. The AIM4170 will continue in production. It is the best value for use up through two meters. Units are in stock now.

Array Solutions has a protective case for your AIMuhf analyzer so you donít scratch it or get it dusty, or wet. It uses custom high density water jet cut foam, in a black molded case. There are cutouts for your loads, and adapters as well as the Power Supply and a USB cable.

It's listed on the shopping cart at an introductory price of $39.
