AIM4170D Information
Home Site Map Prog Update Forum Links E-Mail

Features:

  • Frequency range 5KHz to 180 MHz
  • Averaging of scans up to 256x
  • TDR function < NEW May, 2011 >
  • UHF RF connector (N connector is optional)
  • Heavy duty case
  • Sync output for accessories
  • AIM4170D is the same but it has a USB interface for the PC.
  • Both models run the same software and are compatible with Windows tablets.

The AIM4170D package includes:

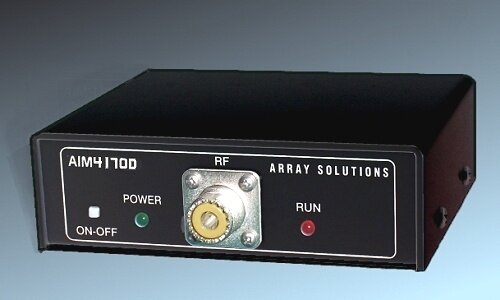

  • AIM4170D antenna analyzer
  • 120 VAC wall power supply
  • Calibration hardware:
    open, short, & standard resistor
  • Cable to interface to the PC.
  • Printed quick start guide
  • Free software updates

Compare to the AIMuhf

Latest program:AIM Prog Update

See the QST product review of the AIM4170

20 meter dipole

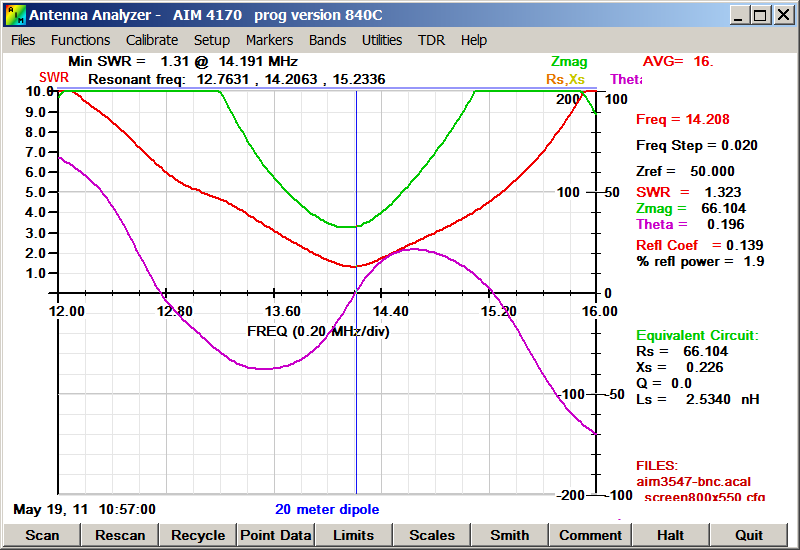

This scan shows a 20 meter dipole.

TDR scan of series coax

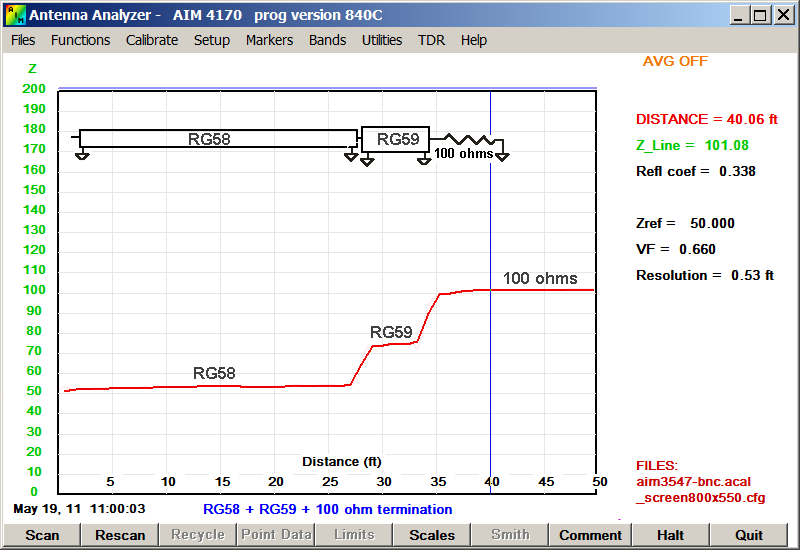

This is a TDR scan of two different coaxial lines terminated with a 100 ohm resistor.
The cursor data on the right side shows the distance along the line (feet or meters) and the impedance at this point.

It is now in stock and ready to ship.


Orders can be placed at our on-line store
NEW lower price Feb 10, 2015:
The base price of $475 includes the standard calibration loads and power supply for 120V operation.
When placing your order, you can specify if you would like an optional RS232 cable or USB adapter.
MADE in USA


Array Solutions has a protective case for your AIM4170 analyzer (any model) so you donít scratch it or get it dusty, or wet. It uses custom high density water jet cut foam, in a black molded case. There are cutouts for your loads, and adapters as well as the Power Supply and a USB adapter cable.

It's listed on the shopping cart at an introductory price of $39.

Updated: May 19, 2011
