Jan 18, 2017-- Latest VNAuhf program : VNAuhf_635A
previous version: VNAuhf_628B
See the VNA2180 model
***** See the QST review of the VNAuhf in QST July, 2013 *****

Two-port vector network analyzer

The VNAuhf is a Vector Network Analyzer for measuring impedance (magnitude and phase) and filter transmission in the range of 5 KHz to 1 GHz.

A PC is used to plot parameters, such as: Impedance, SWR, Return Loss, S21 and S11.

The test frequency is generated digitally.

An analog to digital converter digitizes the raw data. This avoids non-linearity associated with diode detectors, and results in very good dynamic range and linearity for accurate magnitude and phase measurements.

    Main Features:
  • Port A is equivalent to an antenna analyzer. (Similar to the AIMuhf).
  • Port B has a 50 ohm input impedance with return loss greater than 20dB.
  • Port B nominal dynamic range: 90 dB up to 200 MHz, 70 dB up to 500 MHz, 60 dB up to 1 GHz.
  • Programmable RF amplitude for Port A (-13 to -33 dBm).
  • Resistance and reactance measurements of antennas and discrete components.
  • Transmission measurements through filters or networks.
  • Markers for impedance scans and Smith charts.
  • Parameters that can be plotted include:
    • Resistance and reactance for series or parallel equivalent circuits.
    • Impedance magnitude and phase angle.
    • SWR
    • Return loss
    • Two port network transmission (S21, magnitude and phase).
    • S11 and S21 can be plotted at the same time.

  • Cable length, impedance, loss, and velocity factor
  • Distance to fault (open or short)
  • TDR (Time Domain Reflectometry) plots
  • Smith chart displays (featuring phase rotation and zoom)
  • Band scan to check for interfering signals
  • Quartz crystal parameter measurements
  • Preprogrammed functions, such as tuning a WL stub, and many more
  • I/O expansion port for accessories (digital and analog)
  • Calibration loads are included
  • No internal adjustments
  • Optically isolated USB interface to PC

    Impedance measurements can range up to 10K ohms. The sign of the phase angle indicates either inductive or capacitive reactance without ambiguity.

    The RF generator can also be used as a signal source for testing receivers. The frequency is very stable and it can be calibrated to WWV.

    Digitized data is sent to the PC via an optically isolated USB port. Power for the VNAuhf can be obtained from a small DC power supply or a battery. With a laptop computer, the unit is quite small and portable. Measurements can be made at ground level and translated as if they were at the antenna feedpoint by using the refer to antenna function.

    The impedance at the antenna itself can be read with the VNAuhf located in the shack at the receiving/transmitting end of the coax. The cable can be any length. The cable's impedance and loss characteristics are determined by a simple calibration procedure and the antenna's impedance is then plotted directly during the scan.

    Numeric values can be read from the graph data using the mouse-controlled cursor.

    The scan data can be saved to disk or printed to compare before and after results. It can also be imported into spreadsheet programs for further analysis.

    70cm Notch Filter
    VNAuhf scan of a 70cm Notch Filter made with an Open Stub of RG316 coax

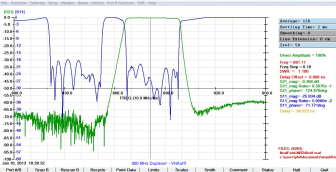

    900MHz Duplexer
    Duplexer
    (click for larger image)


    COMPARISON WITH THE VNA2180

    The VNAuhf is not a replacement for the VNA2180. The VNA2180 will continue in production.

    ParameterVNAuhfVNA2180
    Frequency Range 5 KHz to 1 GHz 5 KHz to 180 MHz
    Output signal into 50 ohms 0.035Vrms (-13dBm) 0.5Vrms (+7dBm)
    Max interference input
    while measuring
    0.1Vrms (-7dBm) 1.4Vrms (+16dBm)
    Programmable output level YesYes
    Two ports for filter testing Yes Yes
    Program port for accessories Yes Yes
    Antenna & component testing Yes Yes
The VNAuhf is available for $1295 including standard calibration loads, cables and power supply for 120V operation.

Orders can be placed at our on-line store

MADE in USA



Updated: Jan 22, 2016
Note - preliminary specification, subject to change
MADE in USA
CIRCUITS AND PROCEDURES used by this system are covered by patent.
