VNA 2180

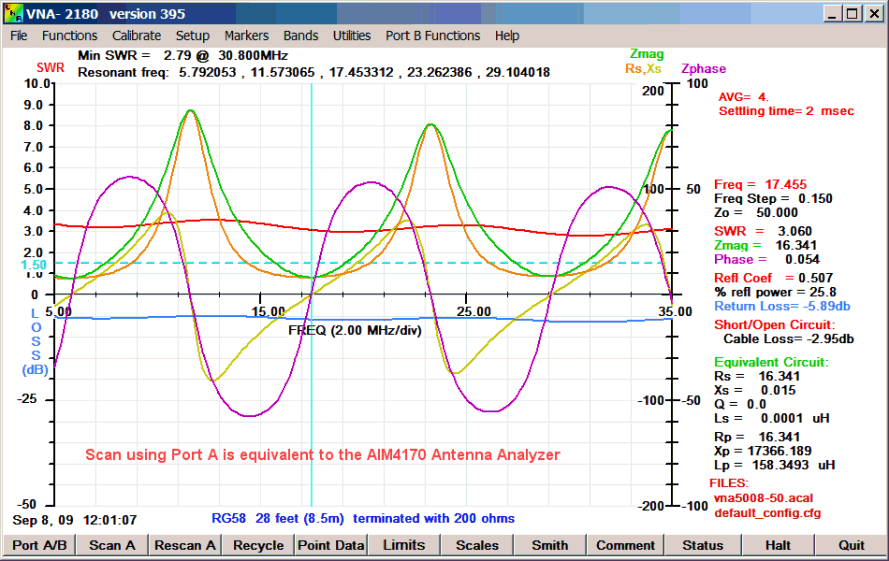

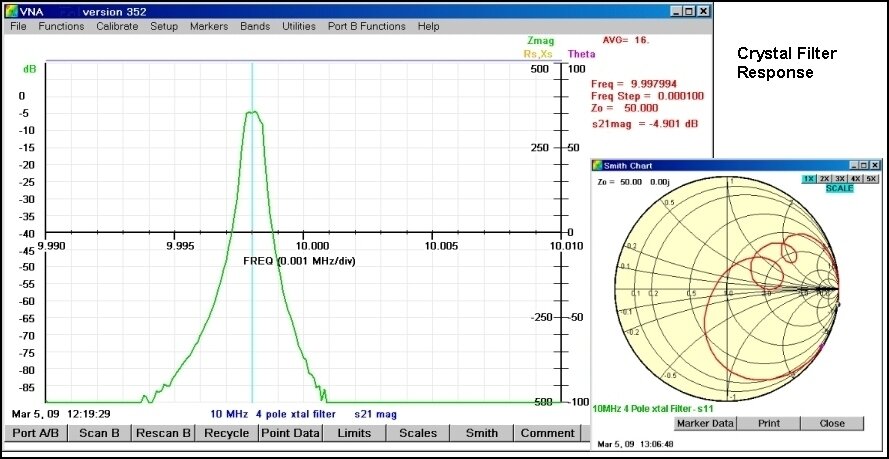

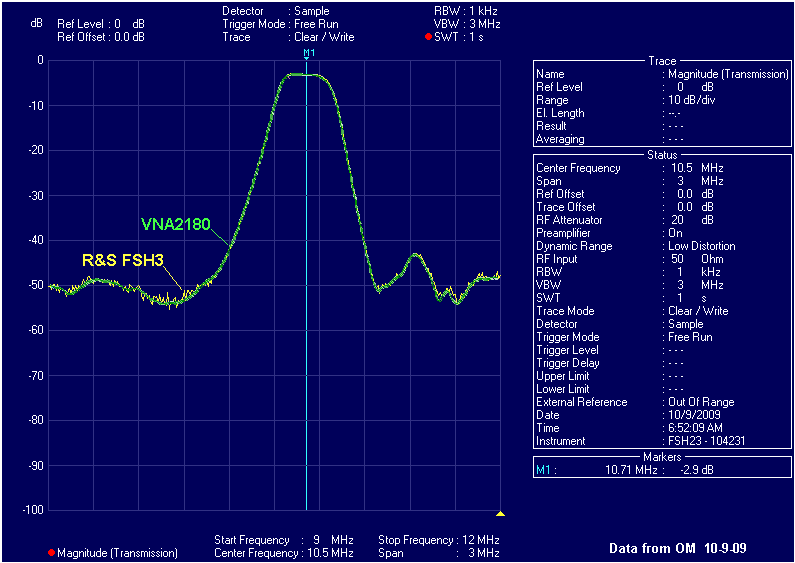

The lastest program and manual are available (Aug 27, '14): VNA_546B.zip       What's New (The program will run in the demo mode if the hardware is not available. Sample scan files are included with the zip package.) See the review of the VNA2180 in QST March, 2011 See the new VNAuhf model   The Vector Network Analyzer, VNA2180, measures impedance (magnitude and phase) and filter transmission in the range of 5 KHz to 180 MHz. A PC is used to plot parameters, such as: Impedance, SWR, Return Loss and S21. The test frequency is generated digitally. An analog to digital converter digitizes the raw data. This avoids non-linearity associated with diode detectors, and results in very good dynamic range and linearity for accurate magnitude and phase measurements.   Main Features: Port A is equivalent to an antenna analyzer. (Similar to the AIM4170C). Port B has a 50 ohm input impedance with return loss greater than 30dB. Port B nominal dynamic range: 100dB up to 50MHz, 80dB up to 160MHz. Programmable RF amplitude for Port A (+7 to -13 dBm). Resistance and reactance measurements of antennas and discrete components Impedance measurements through filters or networks Markers for impedance scans and Smith charts Parameters that can be plotted include: Resistance and reactance for series or parallel equivalent circuits Impedance magnitude and phase angle SWR Return loss Two port network transmission (S21, magnitude and phase) S11 and S21 can be plotted at the same time. Cable length, impedance, loss, and velocity factor Distance to fault (open or short) TDR (Time Domain Reflectometry) plots Smith chart displays (featuring phase rotation and zoom) Band scan to check for interfering signals Quartz crystal parameter measurements Preprogrammed functions, such as tuning a ¼ WL stub, and many more I/O expansion port for accessories (digital and analog) Calibration loads are included No internal adjustments Optically isolated USB interface to PC Impedance measurements can range up to 10K ohms. The sign of the phase angle indicates either inductive or capacitive reactance without ambiguity. The RF generator can also be used as a signal source for testing receivers. The frequency is very stable and it can be calibrated to WWV. Digitized data is sent to the PC via an optically isolated USB port. Power for the VNA can be obtained from a small DC power supply or a battery. With a laptop computer, the unit is quite small and portable. Measurements can be made at ground level and translated as if they were at the antenna feedpoint by using the refer to antenna function. The impedance at the antenna itself can be read with the VNA located in the shack at the receiving/transmitting end of the coax. The cable can be any length. The cable's impedance and loss characteristics are determined by a simple calibration procedure and the antenna's impedance is then plotted directly during the scan. Numeric values can be read from the graph data using the mouse-controlled cursor. The scan data can be saved to disk or printed to compare before and after results. It can also be imported into spreadsheet programs for further analysis. SAMPLE SCANS Transmission through a four pole crystal filter Port A scan of a transmission line terminated with 200 ohms. (equivalent to an AIM4170C) 10.7 MHz Bandpass filter showing VNA scan overlaid on a scan using Rohde & Schwarz FSH3. COMPARISON WITH THE AIM4170C The VNA2180 is not a replacement for the AIM4170. The AIM4170C will continue in production. Parameter VNA2180 AIM4170C Output signal into 50 ohms 0.5Vrms (+7dBm) 0.028Vrms (-18dBm) Max interference input while measuring 1.4Vrms (+16dBm) 0.1Vrms (-7dBm) Programmable output level Yes No Two ports for filter testing Yes No Program port for accessories Yes No Antenna & component testing Yes Yes

The VNA2180 is available for $995 including standard calibration loads, cables and power supply for 120V operation. Orders can be placed at our on-line store MADE in USA Updated: Jan 22, 2016 Note - preliminary specification, subject to change MADE in USA CIRCUITS AND PROCEDURES used by this system are covered by patent.
